Stretch Wrap & Pallet Unitizing Guide 2026
Film types, gauges, wrapping technique, machine vs hand comparison, OSHA compliance, and retailer requirements.
Film types, gauges, wrapping technique, machine vs hand comparison, OSHA compliance, and retailer requirements.
Stretch wrap is the final step in the pallet supply chain -- and one of the most commonly done incorrectly. Under-wrapped loads shift in transit, fail retail receiving inspections, and create worker safety hazards. Over-wrapped loads waste film and cost more than necessary. This complete guide covers stretch film types, gauges, wrapping techniques, machine vs. hand application, OSHA compliance, and retailer-specific requirements for operations across Florida, Georgia, New Jersey, Maryland, and Delaware.

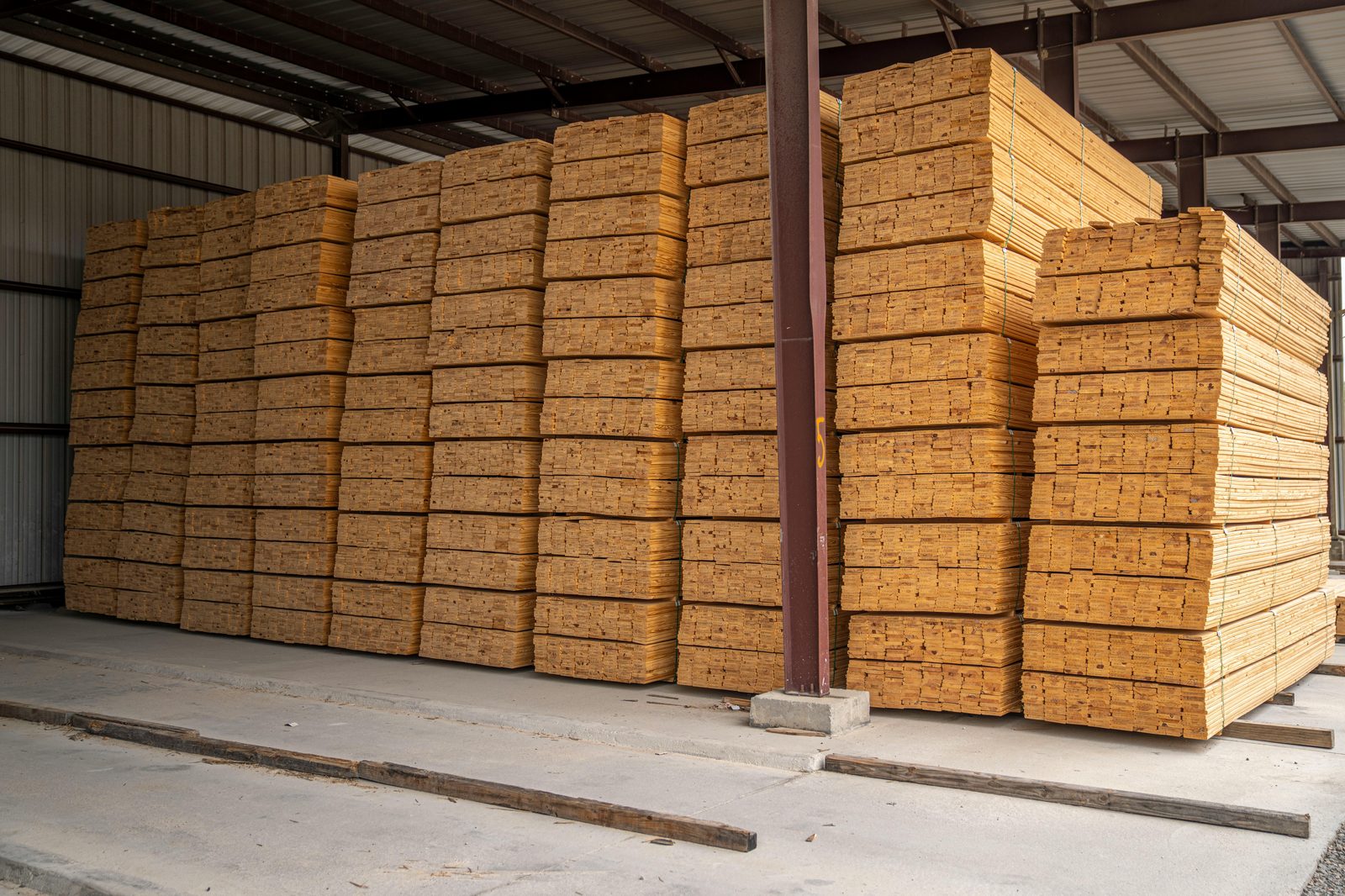

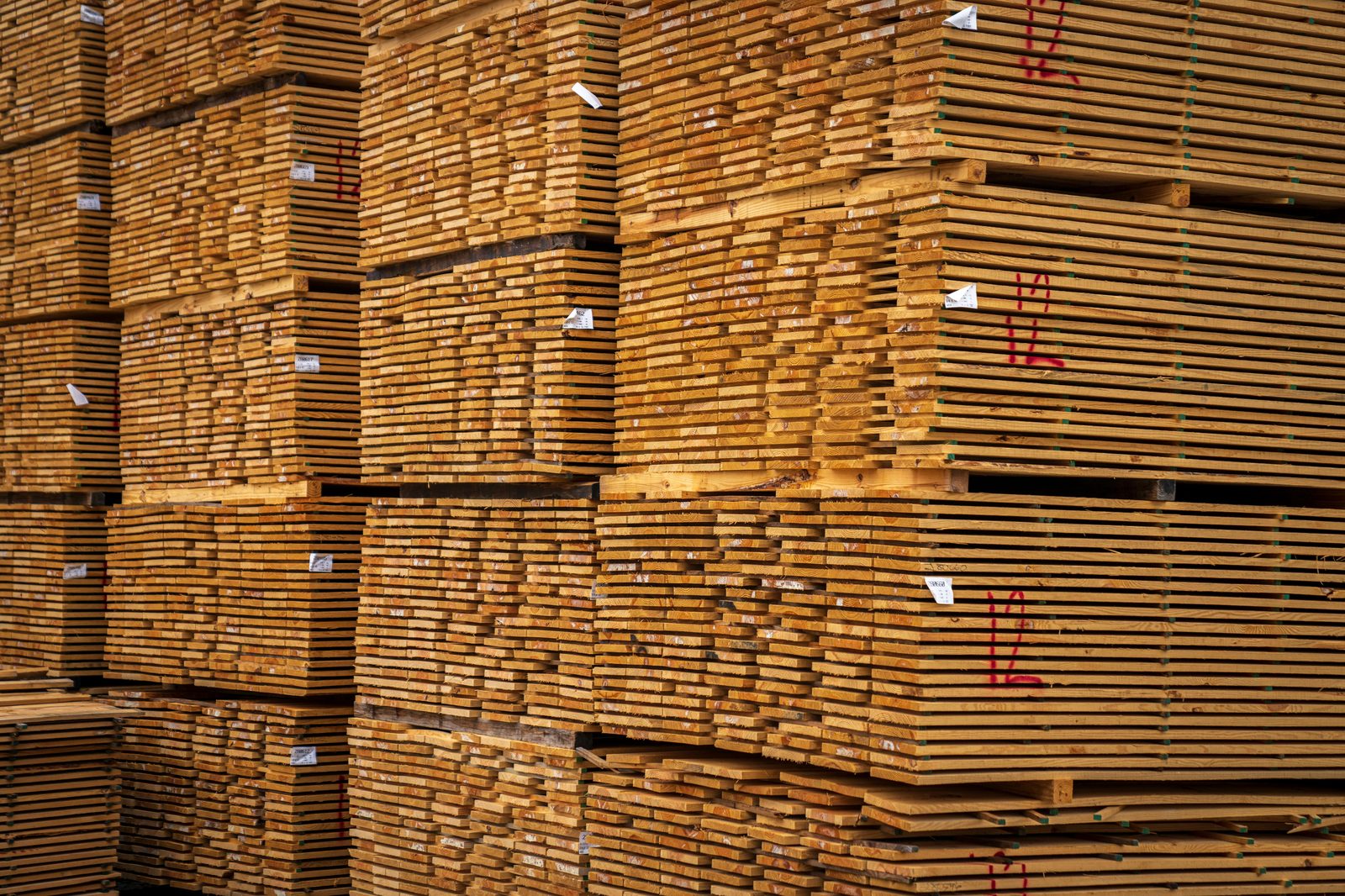

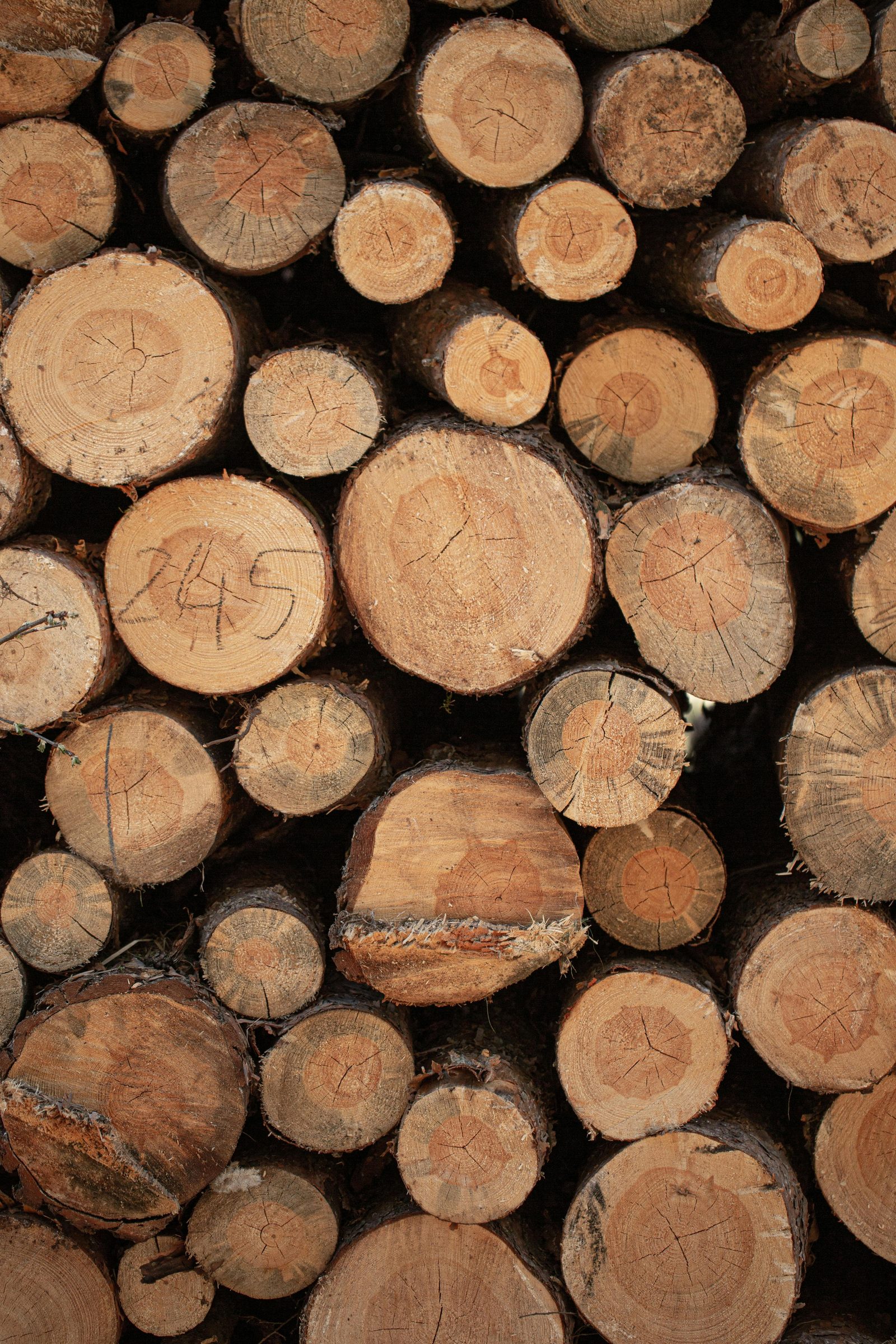

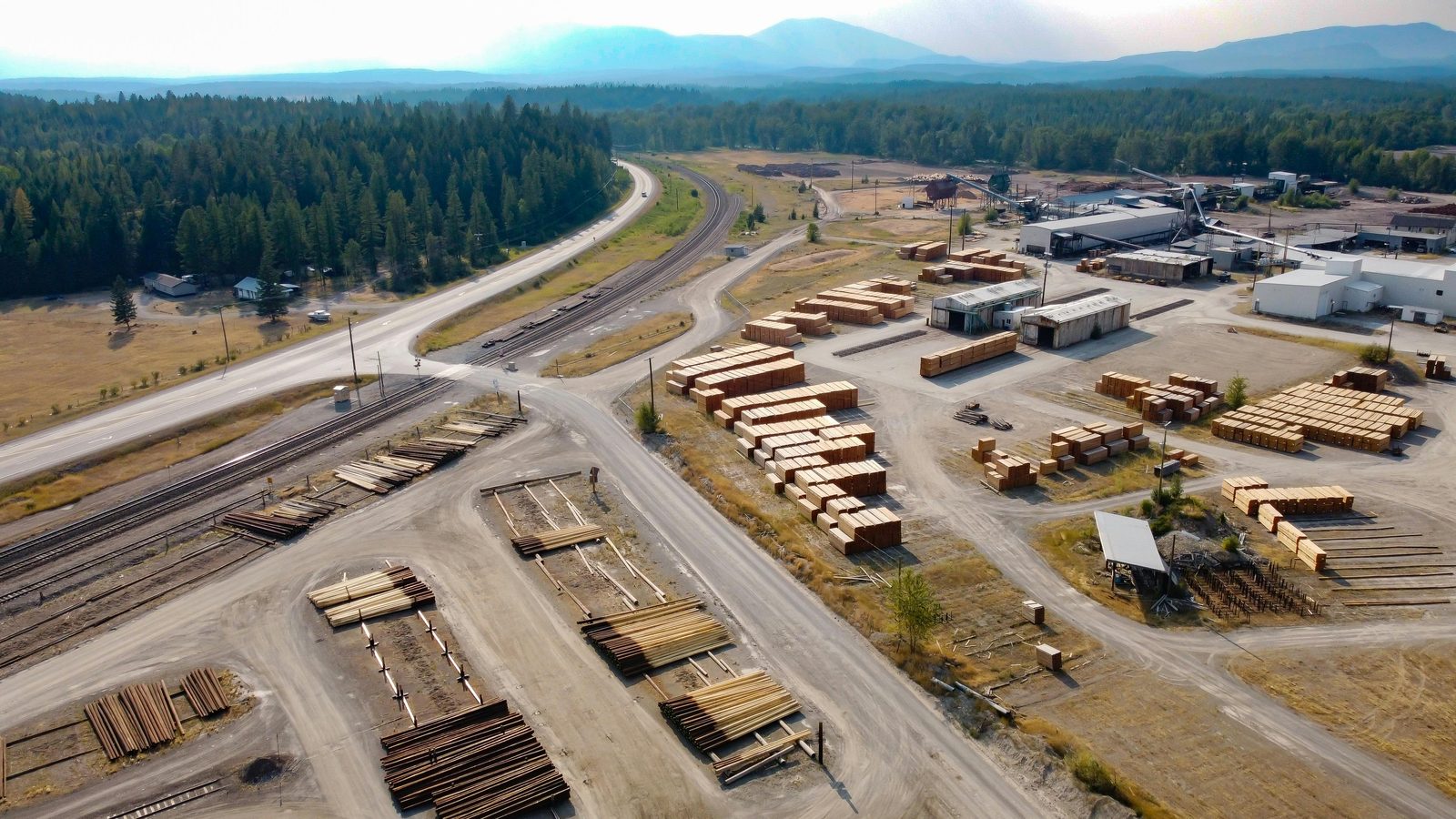

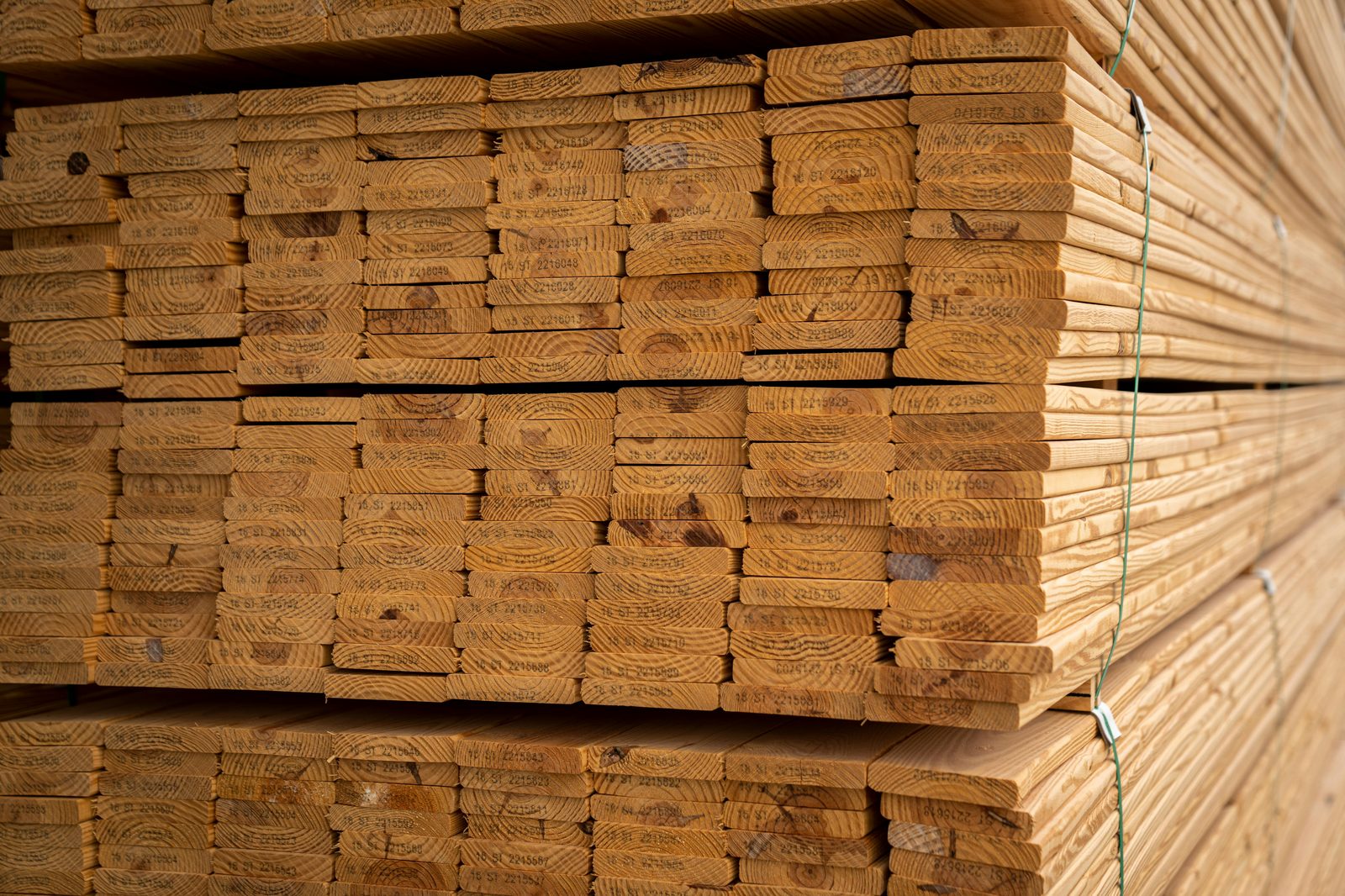

Stamped kiln-dried pallet lumber, bulk warehouse stock, dimensional yard inventory, raw softwood logs, and sawmill operations - the supply chain behind every custom and standard pallet we ship.
| Film Type | Gauge | Clarity | Strength | Best For |
|---|---|---|---|---|
| Cast stretch (hand) | 70-90 gauge | Excellent | Good | Standard pallets, retailer compliance, FBA |
| Blown stretch (hand) | 60-80 gauge | Hazy | Excellent | Sharp edges, heavy/irregular loads |
| Machine stretch film | 47-80 gauge | Good-Excellent | Excellent with pre-stretch | High-volume operations with stretch wrappers |
| Colored stretch wrap | 80 gauge typical | Opaque | Good | Load ID, security (not for Amazon FBA) |
| Black stretch wrap | 80 gauge typical | Opaque | Good | Security / privacy shipments only |
| UV-resistant stretch | 80-100 gauge | Clear/tinted | Good+ | Outdoor storage, Florida sun exposure |
| VCI stretch wrap | 80 gauge typical | Clear | Good | Metal parts / corrosion-sensitive loads |
Stretch wrap is a linear low-density polyethylene (LLDPE) film used to unitize loads on pallets by wrapping multiple layers around the product and pallet to prevent shifting during transport and storage. Standard machine stretch film is 80 gauge (20 microns) and stretches 150% to 300% during application. A properly unitized pallet load requires a minimum 5-inch overlap between wrap layers, complete coverage from the pallet base to the top of the load, and at least 3 full rotations at the base to anchor the film to the pallet. Improperly wrapped pallet loads are the leading cause of in-transit product damage.
| Factor | Hand Wrapping | Machine Wrapping |
|---|---|---|
| Labor per pallet | 60-90 seconds | 20-45 seconds |
| Film consumption per pallet | 300-500 ft (higher) | 150-300 ft (lower with pre-stretch) |
| Pre-stretch capability | 10-20% (human-applied) | 150-300% (machine-applied) |
| Wrap consistency | Variable | Highly consistent |
| Film cost per pallet (80 gauge) | market rate-0.85 | market rate-0.45 |
| Equipment cost | None | $1,500-25,000+ (turntable to rotary arm) |
| Breakeven volume | N/A | ~50-150 pallets/day depending on equipment |
| Load containment force | Lower | Higher |
| Worker injury risk | Back strain from walking/bending | Low -- minimal operator movement |
ⓘ Florida Pallet Supply can be more competitive for your area. Submit a free quote now →
| Retailer | Stretch Wrap Required? | Film Color | Label Visibility | Notes |
|---|---|---|---|---|
| Amazon FBA | Yes -- mandatory | Clear only | All 4 sides scannable | Colored/black film explicitly prohibited |
| Walmart | Yes -- required | Clear preferred | Required | Load must be stable through LTL transit |
| Costco | Yes -- required | Clear | Required | Display pallets: neat professional wrap |
| Whole Foods | Yes | Clear | Required | GFSI audit facilities inspect wrap quality |
| Trader Joe's | Yes | Clear preferred | Required | Not formally published -- Grade A standard implies wrapped |
| Aldi | Yes -- display pallets especially | Clear | Required | Shopper-visible pallets on sales floor |
| Home Depot / Lowes | Yes | Clear | Required | Heavy loads: use 90-100 gauge film |
| 3PL / General freight | Best practice, often required | Any | Varies | Check carrier/3PL requirements |
OSHA does not publish a specific stretch wrap standard, but several regulations require that palletized loads be secured and stable:
Materials must be stored in a manner that prevents hazard. Unstable pallet loads that can topple or shift create an OSHA-citable hazard. Proper stretch wrapping is the primary engineering control for pallet load stability.
Powered industrial truck (forklift) safety regulations require that loads be carried safely. A load that is not unitized or is improperly wrapped increases the risk of load drop, tip-over, or shifting during forklift operation.
OSHA can cite employers under the General Duty Clause for recognizable hazards not covered by specific standards. Pallets loaded without stretch wrap that collapse and injure workers have resulted in General Duty citations. Document your wrapping procedures.
OSHA 1910.178 and ANSI/ITSDF B56.1 limit pallet load height to what can be safely transported by forklift without obscuring driver vision. Standard maximum is 60 inches loaded (including pallet deck) for most single-pallet configurations. Stretch wrap does not extend allowable height.
Standard hand stretch wrap for pallet unitizing is 80-gauge (20 micron) cast stretch film. For heavy loads (over 1,500 lb), use 90-100 gauge film. Machine stretch wrap (used with stretch wrap machines) is typically 60-80 gauge because machine application applies consistent pre-stretch of 150-300%, making thinner film perform like heavier hand wrap. For cold chain and outdoor storage, choose UV-resistant or enhanced cling stretch film.
Minimum 4 complete revolutions of stretch film around the pallet for standard loads. OSHA-aligned best practice for loads over 1,000 lb or loads destined for LTL freight (where pallets get moved multiple times) is 6-8 revolutions. Always anchor the wrap at the pallet base on the first revolution and fold or tuck the final wrap to secure the tail.
Cast stretch wrap is manufactured by extruding melted plastic through a flat die onto a cooling roller. It is clearer, quieter to apply, tears more easily, and is the most common type. Blown stretch wrap is manufactured by extruding plastic upward into a bubble that is then collapsed and wound. Blown film is stronger, more puncture-resistant, and better for irregular or sharp-edged loads but is more expensive and less clear. For Amazon FBA and most retailer compliance programs, clear cast film is the standard choice.
Colored stretch wrap is useful for load identification and security (tinted film obscures contents from view). However, Amazon FBA explicitly prohibits colored or opaque stretch wrap because it blocks label scanning. Many other retailers require labels to be scannable through the film. If you use colored wrap, verify your retail or 3PL customer explicitly permits it before shipping. Black stretch wrap should only be used for high-security or privacy shipments to non-retail destinations.
OSHA 29 CFR 1910.178 (Powered Industrial Trucks) and 1910.176 (Materials Handling) indirectly govern pallet unitizing. OSHA requires that stacked loads be stable and secured to prevent movement or collapse. Stretch wrap is the primary method for meeting this requirement for palletized goods. Loads that are not adequately unitized and cause collapse resulting in injury can result in OSHA citations for general duty clause violations (Section 5(a)(1)). Additionally, OSHA 29 CFR 1910.176(b) requires that loads not create a hazard during transport.
Grade A GMA 48x40, same-day delivery across FL, GA, NJ, MD & DE.
Florida Pallet Supply delivers new, recycled, and custom pallets across FL, GA, NJ, MD & DE.
GMA 48x40 four-way stringer construction conforms to the National Wooden Pallet & Container Association (NWPCA) 2014 Uniform Standard; deck board configuration 7-board top, 5-board bottom.
Port Tampa Bay phosphate operations under Tampa Port Authority Rule 7-04 require corrosion-resistant pallet specs; we supply heat-treated stock that withstands phosphate-rich environments.
Hurricane preparedness regulations in Miami-Dade and Broward counties require commercial pallet inventory to be either secured (banded + tarped) or relocated above 12 feet by June 1 storm-season opening; our staging team manages compliance for recurring customers.
Pallet weight: new GMA averages 38-42 lb per unit; recycled Grade A averages 35-39 lb; lighter chemical-industry 40x40 pallets weigh 28-32 lb; freight estimation should use 40 lb/pallet for inbound planning.
Custom 42x42 pallet builds use 7/8 inch deck boards for telecommunications-equipment loads; nail-pattern density doubled to handle 5,000 lb static load; runner spacing optimized for 4,000 lb-capacity narrow-aisle reach trucks.
Same-day delivery available within 75 miles of our Tampa, Orlando, Jacksonville, Miami, and Lakeland yards; minimum 24 pallets; small-order pricing applies on freight.
Cold storage facilities (Plant City corridor) use HDPE plastic pallets that wash down at 180F; suitable for USDA Grade A dairy plants and frozen-protein operations; we lease as well as sell.
Buyback pricing for returned pallets: $3-5 per Grade A unit; $1-2 per Grade B; minimum 50-pallet pickup; integrated with our recycling stream for sustainability accounting.
Sustainability reports provided quarterly to standing-order customers; documents pallets recycled, lumber diverted from landfill, and CO2-equivalent savings vs new-only sourcing.
Florida Pallet Supply's lumber sourcing prioritizes Southeast US mill stock from Florida, Alabama, Georgia, Mississippi, and the Carolinas. Mixed hardwood blends typically include oak, maple, ash, and hickory at 600+ specific gravity, kiln-dried to 12-19 percent moisture before fabrication. Southern Yellow Pine #2 grade dominates new GMA builds because of consistent dimensional stability, predictable nail-holding capacity, and competitive economics against Pacific Northwest stock. Regional sourcing reduces transport carbon by approximately 60 percent compared to PNW lumber delivered to Florida operations.
Pallet weight distribution and load engineering at Florida Pallet Supply follows ASME MH1 2016 standards for dynamic, static, and racked load ratings. Dynamic load (during forklift transport) is set at 60 percent of static load to account for shock and vibration. Racked load (front and back stringer support only, mid-deck unsupported) is set at 60 percent of static load to account for deck deflection. Standard 48x40 GMA: 2,500 lb dynamic, 4,600 lb static, 2,800 lb racked. Heavy-duty 48x40 builds with reinforced deck and double-runner stringers: 4,000 lb dynamic, 7,500 lb static, 5,000 lb racked.
Fork-pocket dimensions and fork-clearance specifications matter for warehouse equipment compatibility. Standard 48x40 GMA pallets provide 3.5-inch fork-pocket height (the gap between top deck and bottom deck created by stringers). This accepts standard 2-inch fork tine height with 1.5 inches of vertical clearance. Heavy-duty pallets with thicker stringers may reduce fork-pocket to 3.25 inches, requiring tine-height verification against your forklift fleet. Florida Pallet Supply confirms fork-pocket dimensions on every custom build to prevent dock-floor mismatch issues.
Block pallet construction at Florida Pallet Supply uses nine 4-inch hardwood blocks arranged in a 3-by-3 grid with continuous-face top and bottom decks. Each block is precision-cut from kiln-dried hardwood and nailed with eight 3-inch screw-shank fasteners per block. The continuous-face deck is critical for ASRS (Automated Storage and Retrieval Systems) and AGV (Automated Guided Vehicle) compatibility because stringer interruptions in conventional pallets cause sensor read failures that halt automation lines. Block construction also supports true four-way pallet jack entry from all four sides, eliminating the partial-entry limitation of notched stringer pallets.
Yes. Florida Pallet Supply offers API integration with major WMS systems including Manhattan Active, Oracle WMS Cloud, SAP EWM, Blue Yonder, HighJump, and Mecalux Easy. Custom integration with proprietary ERP systems supported via REST API or EDI. Per-pallet barcode data, lot traceability records, treatment certificates, and POD documentation flow automatically to the customer system.
Both. Per-pallet pricing is standard for orders under 1,000 pallets per quote. Per-truckload pricing applies when orders fill a 53-foot dry van (~600 pallets for standard 48x40 GMA, ~300 for oversized custom). Truckload pricing typically saves 5-15 percent over per-pallet equivalent because freight bundles efficiently. Standing-order customers receive freight bundled into per-pallet pricing for predictable accounting.
Yes. Knockdown (KD) pallets ship flat to save freight space and assemble on-site. Common for international shipments where dimensional weight constraints favor flat-pack. Florida Pallet Supply builds KD pallets in 48x40 GMA and custom sizes; assembly hardware (nails, brackets) included. Per-pallet pricing runs 10-15 percent higher than pre-assembled but freight savings often offset for trans-oceanic shipments.
The IPPC stamp is branded into the wood (not painted or stickered) on at least two opposite sides of each pallet, after heat treatment completes. The stamp shows the IPPC wheat-stalk logo, US country code, the facility's APHIS-registered number (assigned by USDA), and the HT treatment code. Hand-drawn, painted, or stickered marks are rejected at customs because they can be falsified. Stamp legibility must survive normal pallet handling for the full export trip.
Wood GMA pallets typically last 8-15 trips in a typical distribution cycle (warehouse to retail and back). Heavy-duty builds with reinforced stringers and 7/8-inch deck boards stretch lifespan to 20+ trips. Block pallets last longer than stringer pallets - typically 25-40 trips - because the continuous-face deck distributes load forces across nine support blocks instead of three stringers.
Pool pallets are owned by the rental company (CHEP blue, PECO red) and circulate in a closed-loop. You pay per trip and return them. Owned pallets are yours - bought once, depreciated over service life. Pool models work for closed-loop CPG-to-major-retailer flows (Costco, Walmart, Kroger). Owned models work for variable distribution lanes, export, custom specs, and any operation outside the major-retailer pool network. Florida Pallet Supply supplies owned pallets and supports the buy-back program at end-of-life.
Yes. Florida Pallet Supply welcomes customer tours of the Lakeland and Jacksonville processing yards. Tours typically take 90 minutes and include the receiving dock, inspection stations, heat-treatment kilns, build floor, dispatch staging, and quality records library. 30 days notice required for scheduling. Tours are common during initial vendor qualification and quarterly review for standing-order customers.
Yes. Florida Pallet Supply ships mixed orders routinely. Common scenarios: new pallets for high-visibility customer-facing shipments (DTC e-commerce, retail-ready displays) and recycled Grade A for industrial inbound. Pricing applies per pallet type; freight bundles all types on a single truckload. Standing-order programs can lock pricing on a multi-type basket.
Same-day delivery in 19 Florida same-day counties carries no premium over standard pricing for orders confirmed by 2 PM EST. Next-day statewide delivery also has no premium. Emergency dispatch (24/7 outside business hours) carries a $250-500 freight surcharge depending on origin yard and destination distance. Weekend dispatch with 24-hour notice runs $100-250 freight premium for premium-account customers.
Net 30 standard for established customers with credit approval. First three orders run Net 15 or COD. ACH transfer is preferred for invoice payment; credit card accepted with 2.5 percent processing surcharge above $10,000 per transaction. Wire transfer accepted for large orders and international customers. Letter of credit available for export orders over $50,000 on request.
Yes - when properly inspected and graded. Recycled Grade A pallets must demonstrate no broken or replaced boards, fully legible GMA stamp, and pass dynamic load test before grading. Load capacity meets the 2,500 lb dynamic / 4,600 lb static specification per ASME MH1 2016. Recycled Grade B pallets retain structural integrity but show repaired boards; load capacity is typically reduced to 2,000 lb dynamic for non-critical industrial loads.
CP (Chemical Pallet) series are specialized European specs designed for chemical industry export. CP1 measures 1200x1000mm, CP2 1200x800mm, CP3 1140x1140mm, CP9 1140x1140mm reinforced. All carry ISPM-15 heat treatment. EUR/EPAL pallets measure 1200x800mm, use an 11-board pattern, weigh ~25 kg, and are the dominant general-purpose European spec. Florida Pallet Supply builds both CP and EUR/EPAL for European exporters; lead time 7-10 business days, EPAL certification optional.
Total cost of ownership analysis for pallet vendor selection should include: per-pallet purchase price, freight delivery cost, dock labor for receiving, storage cost in yard, repair cost over service life, end-of-life recovery value, compliance documentation overhead, and risk premium for supply disruption. Florida Pallet Supply's standing-order model with buy-back program typically delivers 8-18 percent lower TCO than spot-market alternatives because the buy-back recovers $3-5 per Grade A return that would otherwise be lost.
Sourcing teams running pallet RFPs typically score Florida Pallet Supply against five dimensions: price competitiveness (per-pallet and total cost of ownership including freight), service reliability (on-time delivery rate, dock-scheduling integration capability), spec breadth (new, recycled, custom, ISPM-15, HDPE, specialty), compliance documentation (FSMA, GDP, ITAR, USMCA, ISPM-15), and sustainability program (Scope 3 reporting, buyback program, recycling diversion rate). Florida Pallet Supply scores in the top quartile on service reliability and spec breadth among Florida regional suppliers.
Vendor consolidation programs at Florida 3PL operations typically aim for 3-5 strategic pallet suppliers serving the full mix (new, recycled, custom, ISPM-15). Florida Pallet Supply qualifies as the regional Florida specialist alongside 1-2 national suppliers (typically 48forty for buyback scale and Kamps for Midwest distribution) and a custom-spec specialist for industry-specific builds. This consolidation reduces vendor management overhead while preserving spec flexibility.
Florida Pallet Supply maintains compliance with standards from the National Wooden Pallet & Container Association (NWPCA - palletcentral.com), USDA Animal and Plant Health Inspection Service (APHIS - aphis.usda.gov), International Plant Protection Convention (IPPC ISPM-15 - ippc.int), FDA Food Safety Modernization Act Section 204 (fda.gov), Random Lengths lumber pricing index (randomlengths.com), American Society of Mechanical Engineers MH1 pallet load standard (asme.org), Florida Department of Agriculture (FDACS - fdacs.gov), Customs and Border Protection wood packaging requirements (cbp.gov), Florida Citrus Mutual (flcitrusmutual.com), Florida Tomato Committee (floridatomatoes.org), and the Florida Customs House Brokers Association (flchba.com). Compliance documentation is provided with every export load at no additional charge and supports customer audits, internal QC review, and regulatory submission as required.
