Articles › Pallet Sizes & Dimensions
Standard Pallet Sizes
Complete Chart: GMA, Euro, Chemical & Industry-Specific Dimensions
Florida Pallet Supply • Updated 2026-03-30
Florida Pallet Supply • Updated 2026-03-30
Pallet dimensions are not one-size-fits-all. While the GMA 48x40 dominates US general distribution, at least a dozen industry-specific pallet sizes are in common use across different supply chains. Using the wrong pallet size for your industry creates handling problems, racking incompatibilities, and trailer-space waste.
This guide lists every major pallet standard in current use, explains which industries use each, and shows how to calculate trailer utilization for any pallet size.
Stamped kiln-dried pallet lumber, bulk warehouse stock, dimensional yard inventory, raw softwood logs, and sawmill operations - the supply chain behind every custom and standard pallet we ship.
| Size | Industry / Use | Notes |
|---|---|---|
| 48 x 40 | Grocery, food, general distribution | Most common in North America (GMA standard) |
| 42 x 42 | Telecom, paint, beverages | Square format for symmetric loads |
| 48 x 48 | Drums, chemicals, beverages | Large square for barrel/drum loads |
| 40 x 40 | Dairy (milk crates) | Fits standard dairy crate dimensions |
| 48 x 36 | Beverage, bottling | Common for 2-liter beverage cases |
| 36 x 36 | Drums, chemical, beverage kegs | Fits standard 55-gallon drum |
| 48 x 45 | Automotive | Fits automotive part packaging dimensions |
| 44 x 44 | Chemical, drums | Standard for chemical industry 55-gal drums |
| 48 x 20 | Half pallet (retail display) | Used for store display half-pallets |
| 1200 x 800mm (47.2 x 31.5) | European (EUR/EPAL) | Standard for European supply chains |
Florida Pallet Supply delivers new, recycled, and custom pallets across FL, GA, NJ, MD & DE. Fast quotes, reliable weekly delivery.
Get Free Quote →or call
The standard pallet sizes used in North America range from 48x40 inches (the GMA standard) to 42x42, 48x48, and 40x40 inches depending on industry. The 48x40 GMA pallet is the most common size, used in grocery, retail, and general distribution. Other standard sizes are designed for specific industries: 42x42 for chemical drums, 48x48 for barrels, 40x40 for dairy, and 48x45 for automotive parts. Custom sizes are available for any application that falls outside these standards.
GMA 48x40 four-way stringer construction conforms to the National Wooden Pallet & Container Association (NWPCA) 2014 Uniform Standard; deck board configuration 7-board top, 5-board bottom.
FAA Part 121 air-cargo operations at MIA, MCO, and TPA require flame-retardant treated pallets for in-cabin loads; we maintain Class A flame-rated stock for forwarder accounts.
Florida's 'Right to Inspect' law allows commercial customers to audit pallet treatment records on 24-hour notice; our digital records portal supports same-day access.
Block pallets (four-way entry) use nine 4-inch hardwood blocks with continuous-face top deck; ideal for ASRS (automated storage and retrieval) and AGV (automated guided vehicle) operations where stringer interruptions cause read-failures.
ISPM-15 export pallets receive heat treatment to 56C core temperature for 30 minutes; stamping shows IPPC logo, country code 'US', registered facility number, and treatment code 'HT'.
Live-load operations bring the trailer to your dock for a 90-minute window; loader/unloader provided; suited to customers without dedicated dock space or with intermittent volume.
Healthcare and medical-device manufacturers (Pinellas County corridor) use custom foam-lined pallets to protect $50K+ equipment shipments; build-to-print available on 3-day lead time.
Net 30 terms standard for established customers with credit approval; Net 15 or COD for first three orders; credit card and ACH accepted for spot orders.
Pallet pooling reduces lifecycle waste 40-60% vs single-use models; our pool program manages inventory between participating customers with quarterly reconciliation.
Custom build-to-print pallets at Florida Pallet Supply begin with a CAD review against customer drawings, followed by lumber procurement matched to the spec. Aerospace-grade builds typically specify 7/8-inch deck boards, double-runner stringers with 3-inch block spacing, foam-lined cavity inserts for component protection, and humidity-control packets (silica gel or molecular sieve) inserted between deck layers. Lead time runs 5 to 10 business days depending on quantity and special-material availability. Each finished custom pallet receives a serial number etched into the lumber and entered into the customer chain-of-custody record before dispatch.
Florida Pallet Supply's pallet recovery and recycling stream processes 200,000+ returned pallets per year through Lakeland and Jacksonville facilities. Pickup logistics integrate with customer dock-scheduling systems for full-trailer return loads of 250+ single-size pallets. Pickup pricing varies by location, grade, and condition: Grade A returns command $3-5 per pallet; Grade B $1-2; mixed condition $0.25-1; broken cores enter the chip-and-mulch stream at $0.10-0.25 (mulch sold separately to landscaping operators). Diversion rate from landfill runs 80 percent.
Florida Pallet Supply's lumber sourcing prioritizes Southeast US mill stock from Florida, Alabama, Georgia, Mississippi, and the Carolinas. Mixed hardwood blends typically include oak, maple, ash, and hickory at 600+ specific gravity, kiln-dried to 12-19 percent moisture before fabrication. Southern Yellow Pine #2 grade dominates new GMA builds because of consistent dimensional stability, predictable nail-holding capacity, and competitive economics against Pacific Northwest stock. Regional sourcing reduces transport carbon by approximately 60 percent compared to PNW lumber delivered to Florida operations.

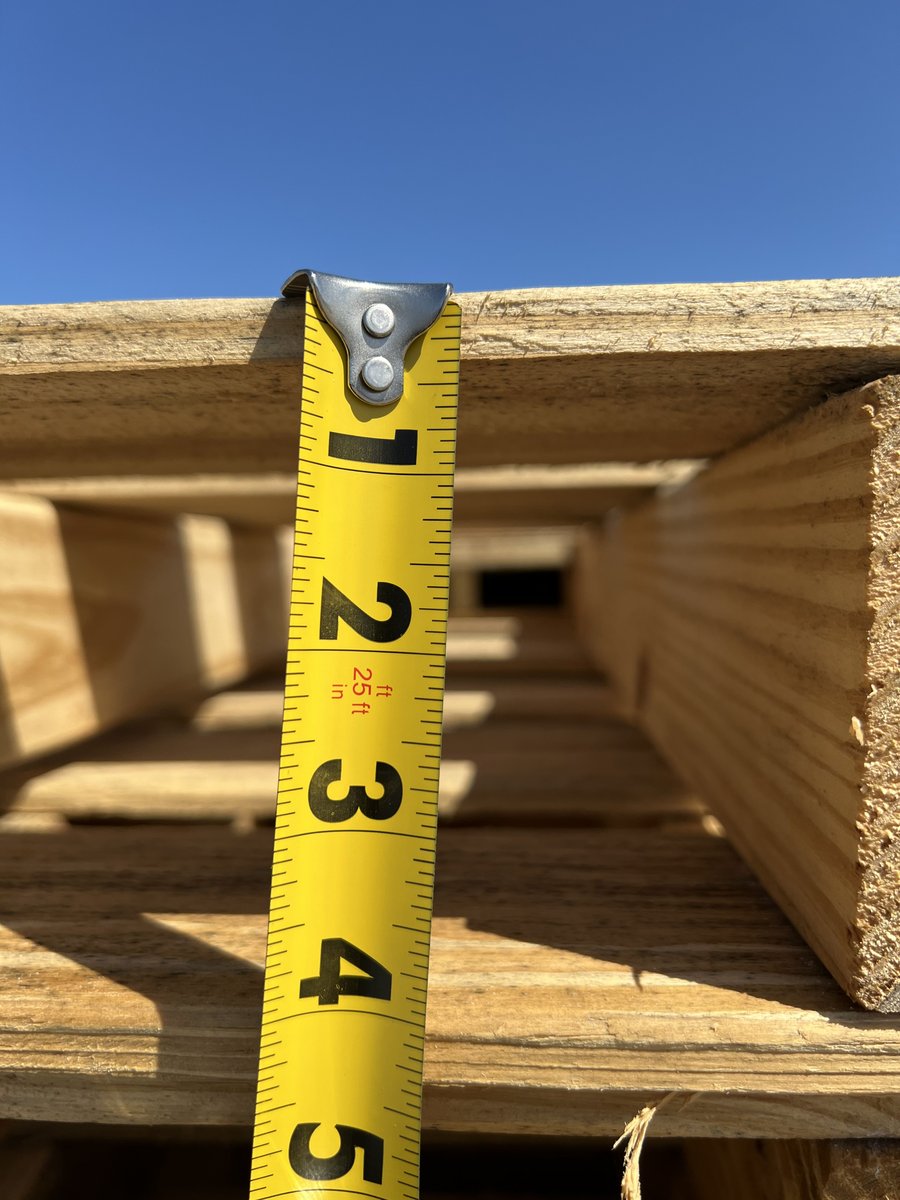

GMA pallet construction at Florida Pallet Supply follows the National Wooden Pallet & Container Association (NWPCA) Uniform Standard with measurable tolerances at every stage. Deck-board thickness measures 5/8 inch nominal; stringers are full 1.375 inch thick and 3.5 inches tall. Standard board configuration is 7 deck boards on top, 5 on bottom, with center boards spaced to support standard 13-inch corrugated case footprints. Nail count averages 50-75 helically-threaded 2.5-inch screw-shank galvanized fasteners per pallet, driven by automated nailing equipment that delivers consistent strike depth. Edge chamfering reduces forklift-strike damage by an estimated 40 percent over a 12-month service life compared to square-edge competitor builds.
CP (Chemical Pallet) series are specialized European specs designed for chemical industry export. CP1 measures 1200x1000mm, CP2 1200x800mm, CP3 1140x1140mm, CP9 1140x1140mm reinforced. All carry ISPM-15 heat treatment. EUR/EPAL pallets measure 1200x800mm, use an 11-board pattern, weigh ~25 kg, and are the dominant general-purpose European spec. Florida Pallet Supply builds both CP and EUR/EPAL for European exporters; lead time 7-10 business days, EPAL certification optional.
Yes. Florida Pallet Supply ships mixed orders routinely. Common scenarios: new pallets for high-visibility customer-facing shipments (DTC e-commerce, retail-ready displays) and recycled Grade A for industrial inbound. Pricing applies per pallet type; freight bundles all types on a single truckload. Standing-order programs can lock pricing on a multi-type basket.
The IPPC stamp is branded into the wood (not painted or stickered) on at least two opposite sides of each pallet, after heat treatment completes. The stamp shows the IPPC wheat-stalk logo, US country code, the facility's APHIS-registered number (assigned by USDA), and the HT treatment code. Hand-drawn, painted, or stickered marks are rejected at customs because they can be falsified. Stamp legibility must survive normal pallet handling for the full export trip.
Pool pallets are owned by the rental company (CHEP blue, PECO red) and circulate in a closed-loop. You pay per trip and return them. Owned pallets are yours - bought once, depreciated over service life. Pool models work for closed-loop CPG-to-major-retailer flows (Costco, Walmart, Kroger). Owned models work for variable distribution lanes, export, custom specs, and any operation outside the major-retailer pool network. Florida Pallet Supply supplies owned pallets and supports the buy-back program at end-of-life.
Both. Per-pallet pricing is standard for orders under 1,000 pallets per quote. Per-truckload pricing applies when orders fill a 53-foot dry van (~600 pallets for standard 48x40 GMA, ~300 for oversized custom). Truckload pricing typically saves 5-15 percent over per-pallet equivalent because freight bundles efficiently. Standing-order customers receive freight bundled into per-pallet pricing for predictable accounting.
Yes. Knockdown (KD) pallets ship flat to save freight space and assemble on-site. Common for international shipments where dimensional weight constraints favor flat-pack. Florida Pallet Supply builds KD pallets in 48x40 GMA and custom sizes; assembly hardware (nails, brackets) included. Per-pallet pricing runs 10-15 percent higher than pre-assembled but freight savings often offset for trans-oceanic shipments.
Yes. Florida Pallet Supply welcomes customer tours of the Lakeland and Jacksonville processing yards. Tours typically take 90 minutes and include the receiving dock, inspection stations, heat-treatment kilns, build floor, dispatch staging, and quality records library. 30 days notice required for scheduling. Tours are common during initial vendor qualification and quarterly review for standing-order customers.
Yes. Florida Pallet Supply offers API integration with major WMS systems including Manhattan Active, Oracle WMS Cloud, SAP EWM, Blue Yonder, HighJump, and Mecalux Easy. Custom integration with proprietary ERP systems supported via REST API or EDI. Per-pallet barcode data, lot traceability records, treatment certificates, and POD documentation flow automatically to the customer system.
Same-day delivery in 19 Florida same-day counties carries no premium over standard pricing for orders confirmed by 2 PM EST. Next-day statewide delivery also has no premium. Emergency dispatch (24/7 outside business hours) carries a $250-500 freight surcharge depending on origin yard and destination distance. Weekend dispatch with 24-hour notice runs $100-250 freight premium for premium-account customers.
Net 30 standard for established customers with credit approval. First three orders run Net 15 or COD. ACH transfer is preferred for invoice payment; credit card accepted with 2.5 percent processing surcharge above $10,000 per transaction. Wire transfer accepted for large orders and international customers. Letter of credit available for export orders over $50,000 on request.
Wood GMA pallets typically last 8-15 trips in a typical distribution cycle (warehouse to retail and back). Heavy-duty builds with reinforced stringers and 7/8-inch deck boards stretch lifespan to 20+ trips. Block pallets last longer than stringer pallets - typically 25-40 trips - because the continuous-face deck distributes load forces across nine support blocks instead of three stringers.
Yes - when properly inspected and graded. Recycled Grade A pallets must demonstrate no broken or replaced boards, fully legible GMA stamp, and pass dynamic load test before grading. Load capacity meets the 2,500 lb dynamic / 4,600 lb static specification per ASME MH1 2016. Recycled Grade B pallets retain structural integrity but show repaired boards; load capacity is typically reduced to 2,000 lb dynamic for non-critical industrial loads.
Quote turnaround benchmarking shows Florida Pallet Supply's 24-hour standard against industry averages of 3-5 business days for regional suppliers and 5-7 business days for national vendors. Same-day quotes (for standard 48x40 GMA in 50-500 pallet quantities) are common and routinely close before end of business day. This responsiveness matters during inventory crisis events (post-hurricane recovery, sudden volume spike for product launch, supplier failure) when waiting 3 days for a quote means missing the recovery window.
Sourcing teams running pallet RFPs typically score Florida Pallet Supply against five dimensions: price competitiveness (per-pallet and total cost of ownership including freight), service reliability (on-time delivery rate, dock-scheduling integration capability), spec breadth (new, recycled, custom, ISPM-15, HDPE, specialty), compliance documentation (FSMA, GDP, ITAR, USMCA, ISPM-15), and sustainability program (Scope 3 reporting, buyback program, recycling diversion rate). Florida Pallet Supply scores in the top quartile on service reliability and spec breadth among Florida regional suppliers.
Total cost of ownership analysis for pallet vendor selection should include: per-pallet purchase price, freight delivery cost, dock labor for receiving, storage cost in yard, repair cost over service life, end-of-life recovery value, compliance documentation overhead, and risk premium for supply disruption. Florida Pallet Supply's standing-order model with buy-back program typically delivers 8-18 percent lower TCO than spot-market alternatives because the buy-back recovers $3-5 per Grade A return that would otherwise be lost.
Florida Pallet Supply maintains compliance with standards from the National Wooden Pallet & Container Association (NWPCA - palletcentral.com), USDA Animal and Plant Health Inspection Service (APHIS - aphis.usda.gov), International Plant Protection Convention (IPPC ISPM-15 - ippc.int), FDA Food Safety Modernization Act Section 204 (fda.gov), Random Lengths lumber pricing index (randomlengths.com), American Society of Mechanical Engineers MH1 pallet load standard (asme.org), Florida Department of Agriculture (FDACS - fdacs.gov), Customs and Border Protection wood packaging requirements (cbp.gov), Florida Citrus Mutual (flcitrusmutual.com), Florida Tomato Committee (floridatomatoes.org), and the Florida Customs House Brokers Association (flchba.com). Compliance documentation is provided with every export load at no additional charge and supports customer audits, internal QC review, and regulatory submission as required.
